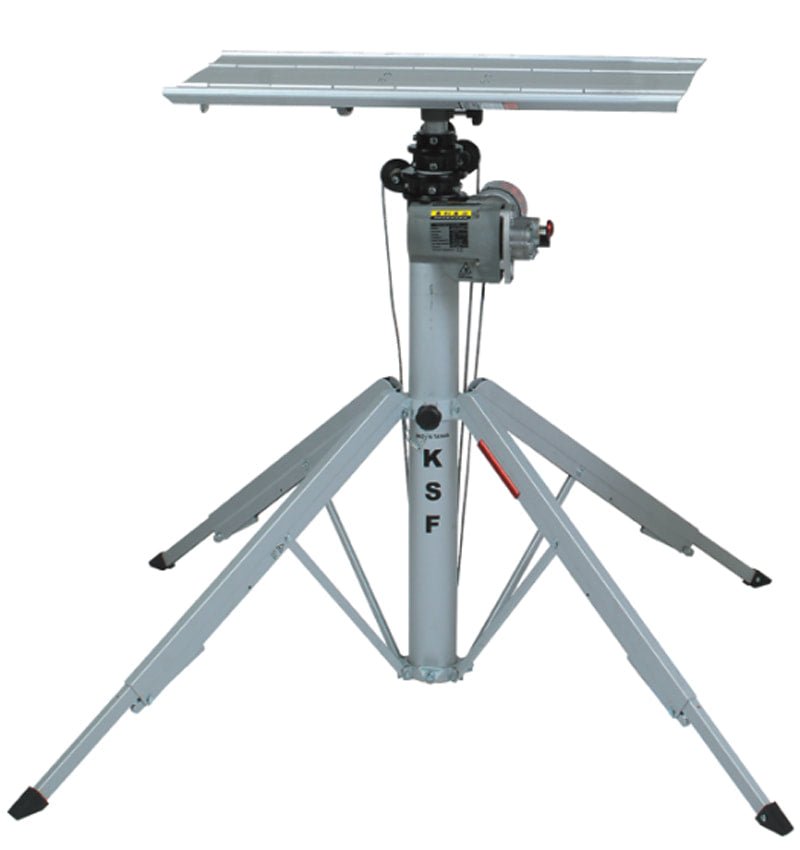

Portable Lifter CM520, primary product photo

Portable Lifter CM520

Electric portable lift: 309 lb @ 9 ft 10 in, 16 ft max, variable speed, folds for pickup transport

Max Load
140 kg / 309 lb @ 9 ft 10 in
Max Lift Height
4.95 m / 16 ft 3 in
Unit Weight
38 kg / 84 lb
Setup
Under 30 seconds
Starting at $5,979 CAD+ applicable taxes

Delivered anywhere we ship in Canada — no freight added at checkout. There’s always a day you’re glad it goes 16 ft instead of 11 ft.

Ordering 3+ units?

Customs handled12-month warrantyQuote aim: 1 business day

Built for This Work

The CM520 is the high-reach lift in the range, built for awning installers, pergola crews, and HVAC contractors holding loads overhead while they fasten. 309 lb capacity at 9 ft 10 in, and 198 lb at its full 16 ft reach.

110V variable-speed electric motor lets one person fine-position loads precisely, with manual cordless drill or hand-crank backup for sites without power. Telescoping aluminum mast and legs, leveling system, overload cut-out. Folds compact for pickup truck transport.

Applications

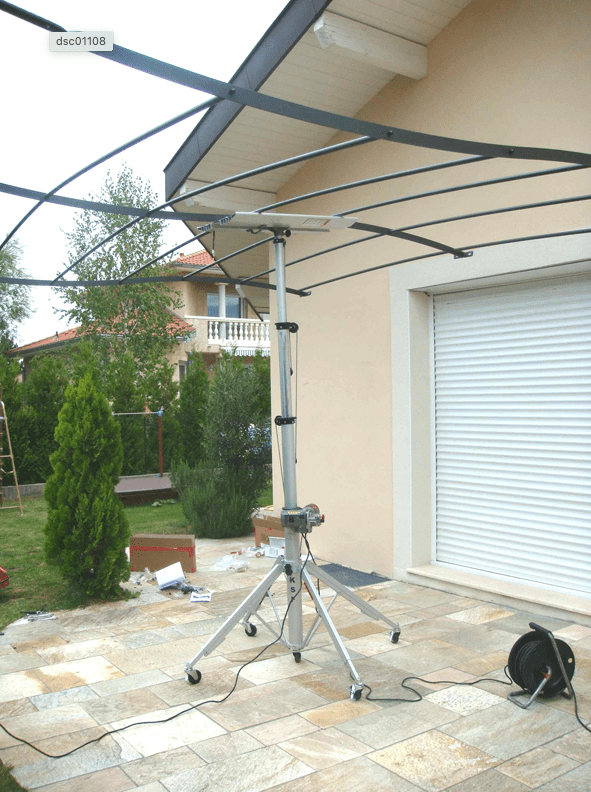

  • Commercial pergola and shade structure installation
  • HVAC work: unit heaters, mini-splits, ductwork and exhaust fans

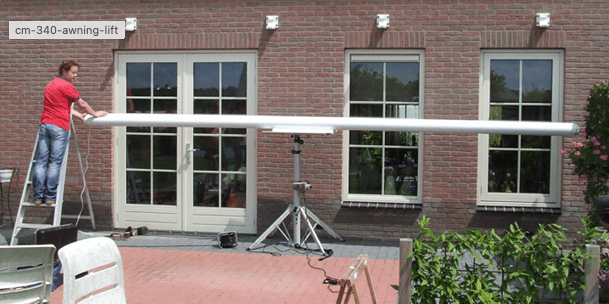

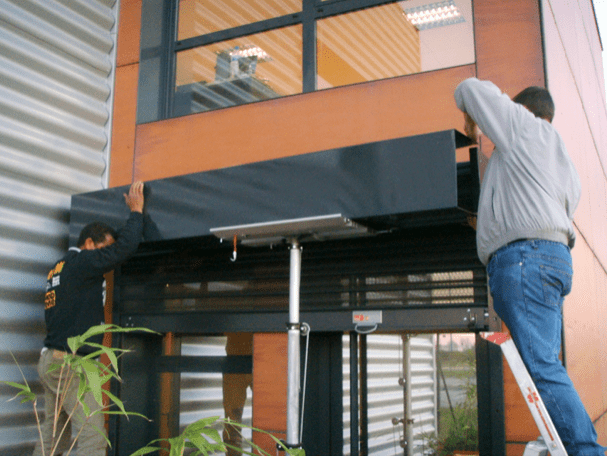

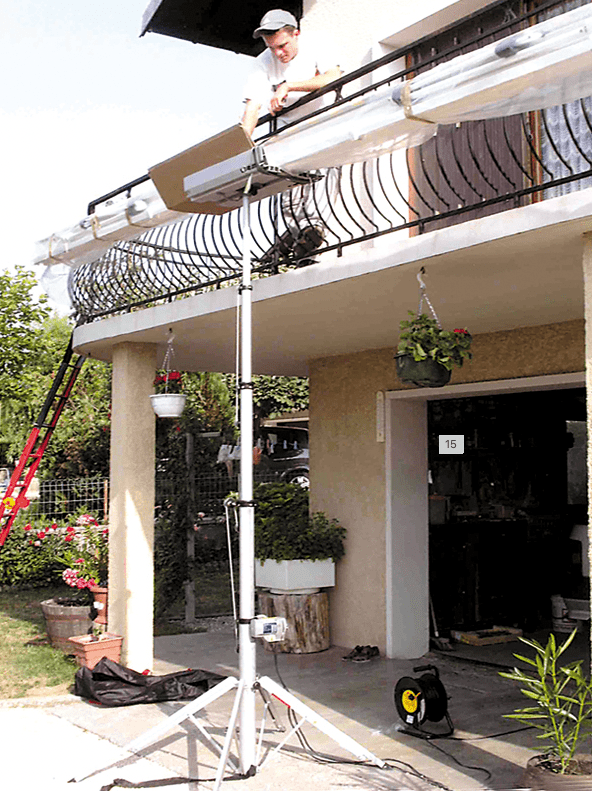

  • Awning installation for storefronts and patios
  • Overhead signage and solar panel positioning

Compatible Materials & Surfaces

  • Awnings and shade structures
  • Unit heaters, HVAC units and ductwork
  • Garage door sections
  • Signage and solar panels

Technical Details

Model NumberCM520
Capacity at 4.0 m130 kg @ 4.0 m (287 lbs @ 13 ft 1 in)
Capacity at Full Height90 kg @ 4.9 m (198 lbs @ 16 ft 1 in)

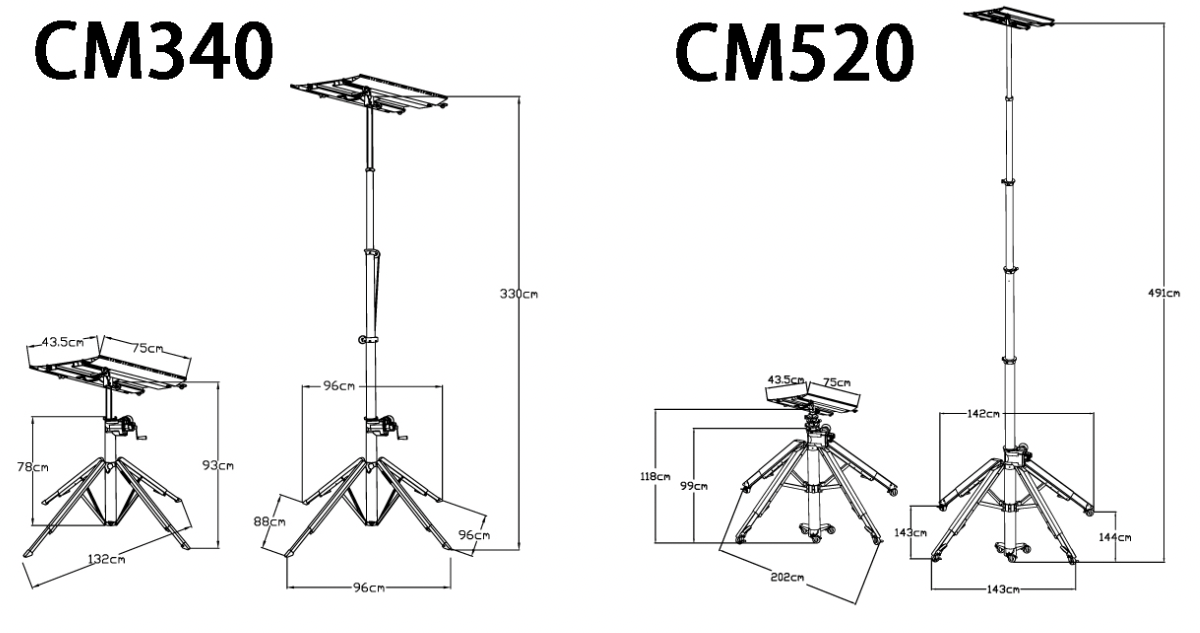

Basic Height121 cm (48 in)
Operating Footprint150 × 140 cm (59 × 55 in)
Power Source110V electric motor (variable speed) with manual backup
OperationSingle operator
TransportFolds, fits in pickup truck bed (wheels included)
Warranty12 months parts and labour

Downloads & Product Proof

Frequently Asked Questions

CM520 vs. CM340: Which Portable Lifter Do You Need?
Compare reach, capacity, weight, and price side by side.
CM520 vs. Genie GH-3.8 Super Hoist
Electric or pneumatic: what each one costs to own and run.
