BD400 Electric Lifter
Electric material lift: 551 lb @ 9 ft 10 in, 13.5 ft reach, 110V with manual crank backup
With forks, pipe cradle and jib crane. 2-cup vacuum glass cradle package: $15,926 CAD delivered. Freight included on both.
Built for This Work

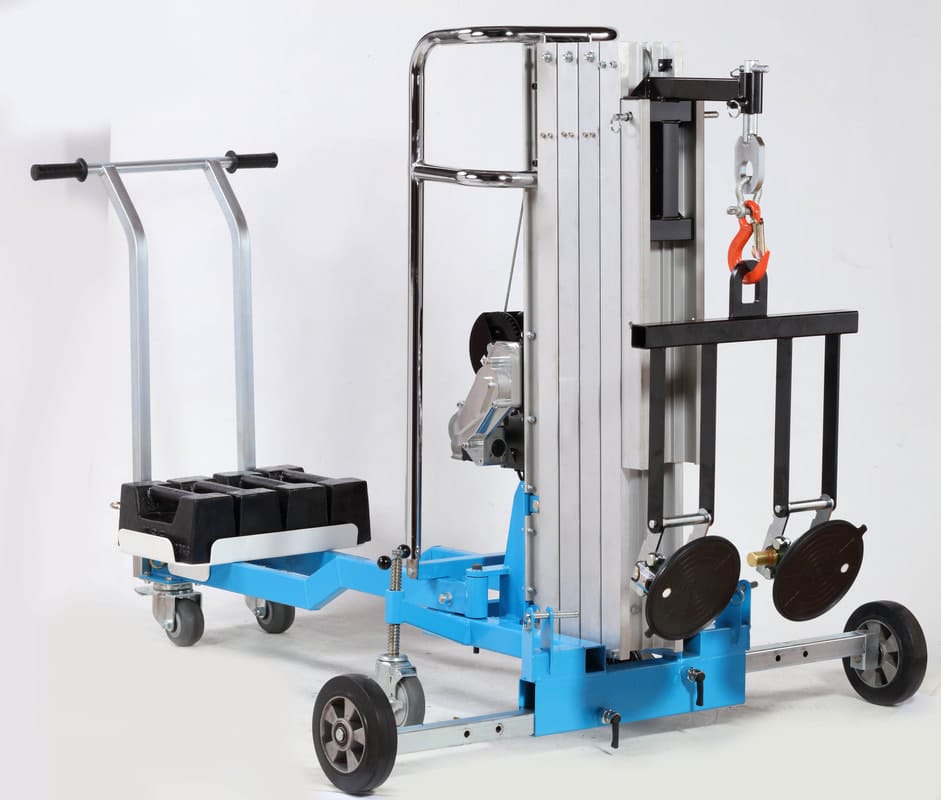

The BD400 is a portable electric material lifter capable of lifting heavy loads and operating in small spaces. 551 lb (250 kg) capacity at 9 ft 10 in (3 m), 441 lb (200 kg) at 13 ft 1 in (4 m), and 13.5 ft (4.1 m) maximum lift height. The 110V electric motor with speed-adjustable switch lifts loads in seconds, with a manual crank backup.

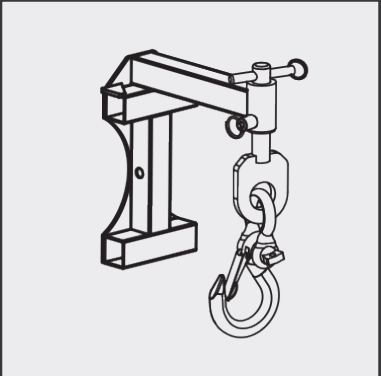

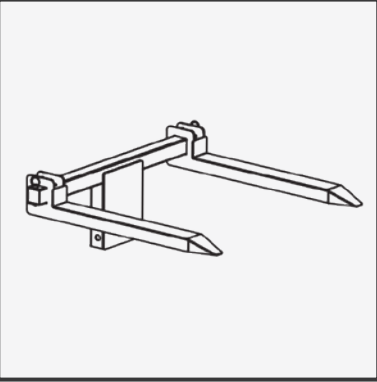

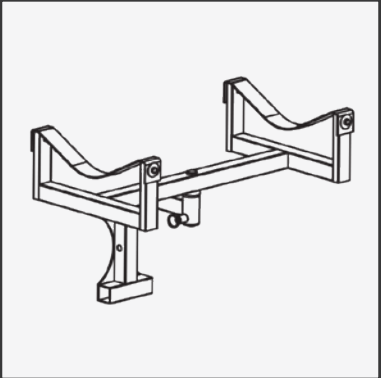

Ships with Forks, Pipe/Box Cradle, and Jib Crane attachments, covering glass replacement, HVAC, electrical, and general construction handling. Telescoping aluminum mast with anti-torsion rails and counterweight tray for added balance.
Applications
- Warehouse and indoor material handling
- Construction site lifting in tight spaces
- Glass replacement with jib crane attachment
- HVAC and electrical component positioning
Compatible Materials & Surfaces
- Pallets, bundles, and loose materials
- Pipes, boxes, and equipment
- Glass panels (with jib crane attachment)
Restrictions
- Smooth-floor optimized — outdoor use on flat compacted surfaces only
Technical Details
