Image shown: Cargo Lifter ES Series cargo lifter. Selected configuration: ES-550.
Cargo Lifter ES Series
Selected model: ES-550
Lower-reach electric cargo lifter for single-storey work.
Select model:
Capacity varies by selected model. The specs below give the condition each figure is rated at.
Built for This Work
The ES Series are heavy-duty electric material lifters for HVAC installation, steel framing, electrical work, and industrial maintenance. All three models share the same 660 lb (300 kg) maximum load capacity — what differs is the lifting reach.
ES-550 reaches 16 ft for single-storey work, ES-700 reaches 22 ft for two-storey construction, and ES-850 reaches 27 ft for multi-storey and high-bay applications. Electric-powered with single-operator setup, folding legs for transport, and anti-fall mast safety system.
Applications
- HVAC installation and rough-in
- Steel framing and structural work
- Electrical conduit and equipment positioning
- Industrial maintenance and warehouse racking
Compatible Materials & Surfaces
- HVAC units and ductwork
- Steel beams and framing
- Electrical conduit and equipment
- Palletized materials and bundles
Restrictions
- Smooth floor surfaces only — not for gravel, mud, or rough outdoor terrain

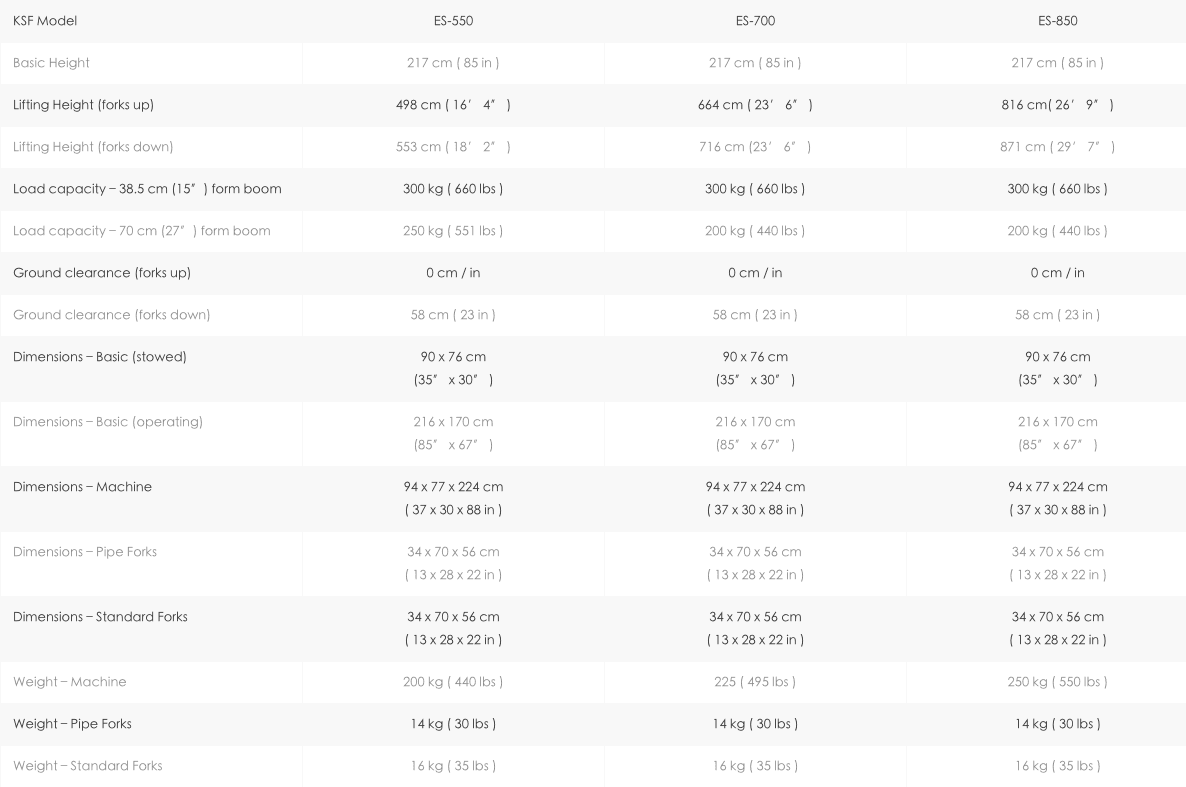

Technical Details— ES-550
Downloads & Product Proof
Frequently Asked Questions
